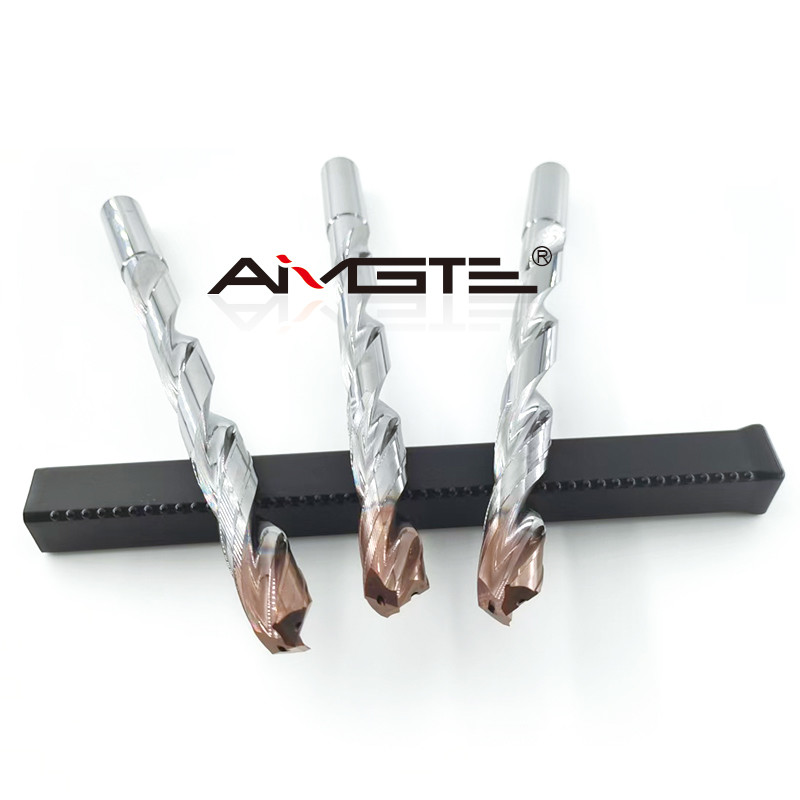

12D 14mm Solid Carbide Deep Hole Drills for 45# 304 steel TiSiN
Coating
Introduction:
High-performance 12×D (168mm depth) solid carbide deep hole drills designed for precision drilling in 45# carbon steel and 304 stainless steel. Features TiSiN coating for enhanced wear resistance and extended tool life.
Specification:
| 15D Deep hole carbide drill |
| Flute dia (D) | Shank dia (d) | OAL(L) | Groov length (L2) | Shank length(LS) |
| 3 | 6 | 95 | 55 | 36 |
| 3.17 | 6 | 106 | 67 | 36 |
| 3.5 | 6 | 116 | 76 | 36 |
| 3.57 | 6 | 116 | 76 | 36 |
| 3.97 | 6 | 116 | 76 | 36 |
| 4 | 6 | 116 | 76 | 36 |
| 4.37 | 6 | 133 | 93 | 36 |
| 4.5 | 6 | 133 | 93 | 36 |
| 4.76 | 6 | 133 | 93 | 36 |
| 5 | 6 | 133 | 93 | 36 |
| 5.1 | 6 | 150 | 110 | 36 |
| 5.16 | 6 | 150 | 110 | 36 |
| 5.41 | 6 | 150 | 110 | 36 |
| 5.5 | 6 | 150 | 110 | 36 |
| 5.56 | 6 | 150 | 110 | 36 |
| 5.95 | 6 | 150 | 110 | 36 |
| 6 | 6 | 150 | 110 | 36 |
| 6.35 | 8 | 167 | 127 | 36 |
| 6.5 | 8 | 167 | 127 | 36 |
| 6.75 | 8 | 167 | 127 | 36 |
| 7 | 8 | 167 | 127 | 36 |
| 7.14 | 8 | 183 | 143 | 36 |
| 7.5 | 8 | 183 | 143 | 36 |
| 7.54 | 8 | 183 | 143 | 36 |
| 7.94 | 8 | 183 | 143 | 36 |
| 8 | 8 | 183 | 143 | 36 |
| 8.33 | 10 | 204 | 160 | 40 |
| 8.5 | 10 | 204 | 160 | 40 |
| 8.73 | 10 | 204 | 160 | 40 |
| 9 | 10 | 204 | 160 | 40 |
| 9.13 | 10 | 221 | 177 | 40 |
| 9.52 | 10 | 221 | 177 | 40 |
| 9.92 | 10 | 221 | 177 | 40 |
| 10 | 10 | 221 | 177 | 40 |
| 10.32 | 12 | 247 | 198 | 45 |
| 10.72 | 12 | 247 | 198 | 45 |
| 11 | 12 | 247 | 198 | 45 |
| 11.11 | 12 | 263 | 214 | 45 |
| 11.51 | 12 | 263 | 214 | 45 |
| 11.91 | 12 | 263 | 214 | 45 |
| 12 | 12 | 263 | 214 | 45 |
| 12.3 | 14 | 297 | 248 | 45 |
| 12.7 | 14 | 297 | 248 | 45 |
| 13.1 | 14 | 297 | 248 | 45 |
| 13.49 | 14 | 297 | 248 | 45 |
| 13.89 | 14 | 297 | 248 | 45 |
| 14 | 14 | 297 | 248 | 45 |
| 20D Deep hole carbide drill |
| Flute dia (D) | Shank dia (d) | OAL(L) | Groov length (L2) | Max.depth of cutting (L1) | Shank length(LS) |
| 3 | 6 | 107 | 65 | 60 | 36 |
| 3.175 | 6 | 134 | 92 | 86 | 36 |
| 3.5 | 6 | 134 | 92 | 86 | 36 |
| 3.572 | 6 | 134 | 92 | 86 | 36 |
| 3.969 | 6 | 134 | 92 | 86 | 36 |
| 4 | 6 | 134 | 92 | 86 | 36 |
| 4.5 | 6 | 158 | 118 | 110 | 36 |
| 4.763 | 6 | 158 | 118 | 110 | 36 |
| 4.8 | 6 | 158 | 118 | 110 | 36 |
| 5 | 6 | 158 | 118 | 110 | 36 |
| 5.5 | 6 | 170 | 132 | 123 | 36 |
| 5.556 | 6 | 182 | 144 | 135 | 36 |
| 5.8 | 6 | 182 | 144 | 135 | 36 |
| 6 | 6 | 182 | 144 | 135 | 36 |
| 6.1 | 8 | 200 | 162 | 151 | 36 |
| 6.35 | 8 | 200 | 162 | 151 | 36 |
| 6.5 | 8 | 200 | 162 | 151 | 36 |
| 6.8 | 8 | 200 | 162 | 151 | 36 |
| 7 | 8 | 200 | 162 | 151 | 36 |
| 7.144 | 8 | 222 | 184 | 172 | 36 |
| 7.4 | 8 | 222 | 184 | 172 | 36 |
| 7.5 | 8 | 222 | 184 | 172 | 36 |
| 7.938 | 8 | 222 | 184 | 172 | 36 |
| 8 | 8 | 222 | 184 | 172 | 36 |
| 8.3 | 10 | 240 | 198 | 184 | 40 |
| 8.5 | 10 | 240 | 198 | 184 | 40 |
| 8.731 | 10 | 240 | 198 | 184 | 40 |
| 9 | 10 | 240 | 198 | 184 | 40 |
| 9.525 | 10 | 262 | 220 | 205 | 40 |
| 9.8 | 10 | 262 | 220 | 205 | 40 |
| 10 | 10 | 262 | 220 | 205 | 40 |
| 10.2 | 12 | 289 | 242 | 225 | 45 |
| 10.319 | 12 | 289 | 242 | 225 | 45 |
| 11 | 12 | 289 | 242 | 225 | 45 |
| 11.113 | 12 | 311 | 264 | 246 | 45 |
| 11.5 | 12 | 311 | 264 | 246 | 45 |
| 11.8 | 12 | 311 | 264 | 246 | 45 |
| 11.906 | 12 | 311 | 264 | 246 | 45 |
| 12 | 12 | 311 | 264 | 246 | 45 |
Features:
✅ Ultra-Fine Grain Carbide Substrate – Optimized for high rigidity and fracture resistance in deep hole
drilling.
✅ TiSiN Coating – Superior heat resistance (up to 1100°C), reducing crater wear and
adhesion.
✅ 12×D Deep Hole Capability – Stable drilling up to 168mm depth (14mm diameter).
✅ Internal Coolant Channels – High-pressure coolant (5–15 MPa) for efficient chip evacuation.
✅ Optimized Geometry – Split-point design reduces thrust force and improves hole
straightness.
Applications:
Hydraulic Components – Valve blocks, cylinder rods
Oil & Gas Equipment – Drill collars, manifolds
Mold & Die – Ejection pin holes, cooling channels
General Machining – Long-hole components in steel/stainless
